  当前位置:首 页 > 产品中心
 进气管进气螺母 >> 接头 >> CGA钢瓶接头/CGA系列钢瓶接头/CGA/钢瓶接头
   产 品 说 明
CGA钢瓶接头/CGA系列钢瓶接头/CGA/钢瓶接头



型号参数:

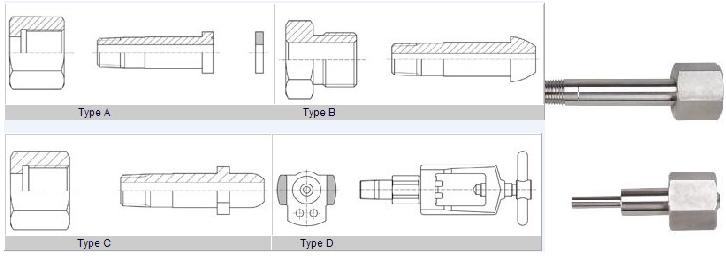

CGA Model No. Product No. Material Nut Nipple Type Washer
170 SS-CGA170 10210 Stainless Steel 0.5625-18UNF (Right Hand) 1-1/2" Length (1/8"NPT) A Nylon
  B-CGA170 10230 Brass 0.5625-18UNF (Right Hand) 1-1/2" Length (1/8"NPT) A Nylon
  BP-CGA170 10240 Brass/Chrome Plated 0.5625-18UNF (Right Hand) 1-1/2" Length (1/8"NPT) A Nylon
180 SS-CGA180 10310 Stainless Steel 0.625-18UNF (Right Hand) 1-1/2" Length (1/8"NPT) A Nylon
  BP-CGA180 10330 Brass 0.625-18UNF (Right Hand) 1-1/2" Length (1/8"NPT) A Nylon
  B-CGA180 10340 Brass/Chrome Plated 0.625-18UNF (Right Hand) 1-1/2" Length (1/8"NPT) A Nylon
200 SS-CGA200 10410 Stainless Steel 0.625-20NGO (Right Hand) 1-1/8" Length (1/8"NPT) C \
  B-CGA200 10430 Brass 0.625-20NGO (Right Hand) 1-1/8" Length (1/8"NPT) C \
  BP-CGA200 10440 Brass/Chrome Plated 0.625-20NGO (Right Hand) 1-1/8" Length (1/8"NPT) C \
280 SS-CGA280 10610 Stainless Steel 0.750-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA280 10630 Brass 0.750-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA280 10640 Brass/Chrome Plated 0.750-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
290 SS-CGA290 10710 Stainless Steel 0.750-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA290 10730 Brass 0.750-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA290 10740 Brass/Chrome Plated 0.750-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
296 SS-CGA296 10810 Stainless Steel 0.803-14UNS (Right Hand) 3" Length (1/4"NPT) B \
  B-CGA296 10830 Brass 0.803-14UNS (Right Hand) 3" Length (1/4"NPT) B \
  BP-CGA296 10840 Brass/Chrome Plated 0.803-14UNS (Right Hand) 3" Length (1/4"NPT) B \
300 SS-CGA300 10910 Stainless Steel 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA300 10930 Brass 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA300 10940 Brass/Chrome Plated 0.830-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
320 SS-CGA320 13010 Stainless Steel 0.830-14NGO (Right Hand) 2" Length (1/4"NPT) A Nyon
  B-CGA320 13030 Brass 0.830-14NGO (Right Hand) 2" Length (1/4"NPT) A Nyon
  BP-CGA320 13040 Brass/Chrome Plated 0.830-14NGO (Right Hand) 2" Length (1/4"NPT) A Nyon
326 SS-CGA326 13110 Stainless Steel 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA326 13130 Brass 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA326 13140 Brass/Chrome Plated 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
330 SS-CGA330 13210 Stainless Steel 0.830-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
  B-CGA330 13230 Brass 0.830-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
  BP-CGA330 13240 Brass/Chrome Plated 0.830-14NGO (Right Hand) 2" Length (1/4"NPT) A Nylon
346 SS-CGA346 13310 Stainless Steel 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA346 13330 Brass 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA346 13340 Brass/Chrome Plated 0.830-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) A Nylon
347 SS-CGA347 13410 Stainless Steel 0.830-14NGO (Right Hand) 3" Length (1/4"NPT) A Nylon
  B-CGA347 13430 Brass 0.830-14NGO (Right Hand) 3" Length (1/4"NPT) A Nylon
  BP-CGA347 13440 Brass/Chrome Plated 0.830-14NGO (Right Hand) 3" Length (1/4"NPT) A Nylon
350 SS-CGA350 13510 Stainless Steel 0.830-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA350 13530 Brass 0.830-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA350 13540 Brass/Chrome Plated 0.830-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
410 SS-CGA410 13610 Stainless Steel 0.855-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA410 13630 Brass 0.855-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA410 13640 Brass/Chrome Plated 0.855-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
415 SS-CGA415 13710 Stainless Steel 0.855-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
  B-CGA415 13730 Brass 0.855-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
  BP-CGA415 13740 Brass/Chrome Plated 0.855-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
500 SS-CGA500 13810 Stainless Steel 0.880-14NGO (Right Hand) 3" Length (1/4"NPT) B \
  B-CGA500 13830 Brass 0.880-14NGO (Right Hand) 3" Length (1/4"NPT) B \
  BP-CGA500 13840 Brass/Chrome Plated 0.880-14NGO (Right Hand) 3" Length (1/4"NPT) B \
510 SS-CGA510 13910 Stainless Steel 0.880-14NGO (Left Hand) 3" Length (1/4"NPT) B \
  B-CGA510 13930 Brass 0.880-14NGO (Left Hand) 3" Length (1/4"NPT) B \
  BP-CGA510 13940 Brass/Chrome Plated 0.880-14NGO (Left Hand) 3" Length (1/4"NPT) B \
520 SS-CGA520 12010 Stainless Steel 0.895-18NGO (Right Hand) 2" Length (1/4"NPT) C \
  B-CGA520 12030 Brass 0.895-18NGO (Right Hand) 2" Length (1/4"NPT) C \
  BP-CGA520 12040 Brass/Chrome Plated 0.895-18NGO (Right Hand) 2" Length (1/4"NPT) C \
540 SS-CGA540 12110 Stainless Steel 0.908-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA540 12130 Brass 0.908-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA540 12140 Brass/Chrome Plated 0.908-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
555 SS-CGA555 12210 Stainless Steel 0.908-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA555 12230 Brass 0.908-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA555 12240 Brass/Chrome Plated 0.908-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
577 SS-CGA577 12310 Stainless Steel 0.965-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA577 12330 Brass 0.965-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA577 12340 Brass/Chrome Plated 0.965-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) C \
580 SS-CGA580 12410 Stainless Steel 0.960-14NGO (Right Hand) 3" Length (1/4"NPT) B \
  B-CGA580 12430 Brass 0.960-14NGO (Right Hand) 3" Length (1/4"NPT) B \
  BP-CGA580 12440 Brass/Chrome Plated 0.960-14NGO (Right Hand) 3" Length (1/4"NPT) B \
590 SS-CGA590 12510 Stainless Steel 0.960-14NGO (Left Hand) 3" Length (1/4"NPT) B \
  B-CGA590 12530 Brass 0.960-14NGO (Left Hand) 3" Length (1/4"NPT) B \
  BP-CGA590 12540 Brass/Chrome Plated 0.960-14NGO (Left Hand) 3" Length (1/4"NPT) B \
620 SS-CGA620 12610 Stainless Steel 1.035-14NGO (Right Hand) 3" Length (1/4"NPT) C \
  B-CGA620 12630 Brass 1.035-14NGO (Right Hand) 3" Length (1/4"NPT) C \
  BP-CGA620 12640 Brass/Chrome Plated 1.035-14NGO (Right Hand) 3" Length (1/4"NPT) C \
660 SS-CGA660 12710 Stainless Steel 1.035-14NGO (Right Hand) 2" Length (1/4"NPT) A Nylon
  B-CGA660 12730 Brass 1.035-14NGO (Right Hand) 2" Length (1/4"NPT) A Nylon
  BP-CGA660 12740 Brass/Chrome Plated 1.035-14NGO (Right Hand) 2" Length (1/4"NPT) A Nylon
668 SS-CGA668 12810 Stainless Steel 1.035-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA668 12830 Brass 1.035-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA668 12840 Brass/Chrome Plated 1.035-14NGO (Right Hand) 2-1/2" Length (1/4"NPT) A Nylon
670 SS-CGA670 12910 Stainless Steel 1.035-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
  B-CGA670 12930 Brass 1.035-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
  BP-CGA670 12940 Brass/Chrome Plated 1.035-14NGO (Left Hand) 2" Length (1/4"NPT) A Nylon
677 SS-CGA677 13010 Stainless Steel 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA677 13030 Brass 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA677 13040 Brass/Chrome Plated 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
678 SS-CGA678 13110 Stainless Steel 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA678 13130 Brass 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA678 13140 Brass/Chrome Plated 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
679 SS-CGA679 13210 Stainless Steel 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
  B-CGA679 13230 Brass 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
  BP-CGA679 13240 Brass/Chrome Plated 1.035-14NGO (Left Hand) 2-1/2" Length (1/4"NPT) C \
680 SS-CGA680 13310 Stainless Steel 1.040-14NGO (Right Hand) 3" Length (1/4"NPT) C \
  B-CGA680 13330 Brass 1.040-14NGO (Right Hand) 3" Length (1/4"NPT) C \
  BP-CGA680 13340 Brass/Chrome Plated 1.040-14NGO (Right Hand) 3" Length (1/4"NPT) C \
695 SS-CGA695 13410 Stainless Steel 1.040-14NGO (Left Hand) 3" Length (1/4"NPT) C \
  B-CGA695 13430 Brass 1.040-14NGO (Left Hand) 3" Length (1/4"NPT) C \
  BP-CGA695 13440 Brass/Chrome Plated 1.040-14NGO (Left Hand) 3" Length (1/4"NPT) C \
701 SS-CGA701 13510 Stainless Steel 1.108-14NGO (Right Hand) 3" Length (1/4"NPT) B \
  B-CGA701 13530 Brass 1.108-14NGO (Right Hand) 3" Length (1/4"NPT) B \
  BP-CGA701 13540 Brass/Chrome Plated 1.108-14NGO (Right Hand) 3" Length (1/4"NPT) B \
702 SS-CGA702 13610 Stainless Steel 1.120-14NGO (Right Hand) 3" Length (1/4"NPT) C \
  B-CGA702 13630 Brass 1.120-14NGO (Right Hand) 3" Length (1/4"NPT) C \
  BP-CGA702 13640 Brass/Chrome Plated 1.120-14NGO (Right Hand) 3" Length (1/4"NPT) C \
703 SS-CGA703 13710 Stainless Steel 1.120-14NGO (Left Hand) 3" Length (1/4"NPT) A Nylon
  B-CGA703 13730 Brass 1.120-14NGO (Left Hand) 3" Length (1/4"NPT) A Nylon
  BP-CGA703 13740 Brass/Chrome Plated 1.120-14NGO (Left Hand) 3" Length (1/4"NPT) A Nylon
705 SS-CGA705 13810 Stainless Steel 1.125-14UNS (Right Hand) 2" Length (1/4"NPT) C \
  B-CGA705 13830 Brass 1.125-14UNS (Right Hand) 2" Length (1/4"NPT) C \
  BP-CGA705 13840 Brass/Chrome Plated 1.125-14UNS (Right Hand) 2" Length (1/4"NPT) C \
750 SS-CGA750 13910 Stainless Steel 1.125-14UNS (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA750 13930 Brass 1.125-14UNS (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA750 13940 Brass/Chrome Plated 1.125-14UNS (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
755 SS-CGA755 14010 Stainless Steel 1.125-14UNS (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  B-CGA755 14030 Brass 1.125-14UNS (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
  BP-CGA755 14040 Brass/Chrome Plated 1.125-14UNS (Left Hand) 2-1/2" Length (1/4"NPT) A Nylon
870 CGA870-1 14110 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA870-2 14120 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA870-3 14130 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
880 CGA880-1 414210 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA880-2 14220 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA880-3 14230 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
890 CGA890-1 14310 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA890-2 14320 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA890-3 14330 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
900 CGA900-1 14410 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA900-2 14420 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA900-3 14430 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
910 CGA910-1 14510 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA910-2 14520 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA910-3 14530 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
920 CGA920-1 14610 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA920-2 14620 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA920-3 14630 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
930 CGA930-1 14710 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA930-2 14720 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA930-3 14730 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
940 CGA940-1 14810 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA940-2 14820 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA940-3 14830 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
950 CGA950-1 14910 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA950-2 14920 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA950-3 14930 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
960 CGA960-1 14110 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA960-2 14120 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA960-3 14130 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
965 CGA965-1 15110 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA965-2 15120 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA965-3 15130 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
973 CGA973-1 15210 Brass/Chrome Plated yoke 1-1/8" Length D Neoprene
  CGA973-2 15220 Brass/Chrome Plated yoke 2" Length D Neoprene
  CGA973-3 15230 Brass/Chrome Plated yoke 3-1/2" Length D Neoprene
